All our industrial robots are sold with commissioning in Poland and are immediately available in our warehouse in Częstochowa
-logo.webp){kind=logo}
Year: 2018 Reach: 1300 mm Payload: 10 kg Robot weight: 28.9 kg Repeatability: ±0.1 mm Gripper: Schunk RH 907 Control: handheld terminal + control cabinet The price includes only the robot arm with remote control and control cabinet, without additional equipment visible in the photo.
Year of manufacture: 2021 Serial number: 585348 Model: KUKA KR 160 R1570 nano / FLR Axles: 6 Payload: 160 kg Reach: 1570 mm Repeatability: ±0.06 mm Weight: 702 kg Controller: KUKA KRC4 Kuka recovery USB stick Safety modules X11 and X13 complete set of plugs Complete documentation I/o beckhoff ek1100 (modules 2xEL1809, 2xEl2809 2xEl9100, 1xEl2024) Dresspack (quantec nano) Remote control holder 00-138-452 Reference module 00-310-641 Mounting screws, transport ears

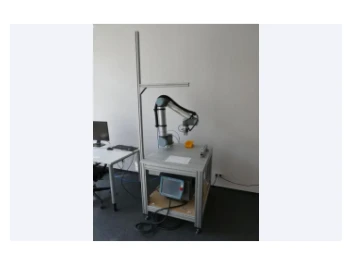

Conveyor belt: total length approx. 200 cm UNIVERSAL UR10 industrial robot: Year of construction: 2019 Serial number: 2019301077 Maximum payload: 10 kg Maximum boom length: 1300 mm Weight: approx. 20 kg Equipment: teach terminal, machine housing Pallet storage Replaceable pallet handling tools Vision system, the entire cell has tinted windows adapted to the vision system
Robotic TIG welding cell Equipment: Rotating welding table – with two interchangeable frames KUKA KR6 R1820 industrial robot arm Year of manufacture: 2018 Serial number: 425602 Weight: 168 kg Max. payload: 6 kg Reach: 1820 mm KUKA KR C4 smallsize-2 controller/controller Year of manufacture: 2018 Serial number: 380929 Weight: 123 kg Dinse DIX TIG 350 AC/DC TIG welding machine Serial number: 19840519 TEKA Caremaster BIA welding fume extraction units (2 pcs.) Flow rate: 2200 m³/h Connection parameters: 400 V / 50 Hz / 2.5 A Power: 1.1 kW Weight: 125 kg / pc. Year of manufacture: 2008 6-section steel cabinet Equipped with additional accessories
ON 17/12/25, A FULL MACHINE AUDIT WAS MADE CONDUCTED BY THE MANUFACTURER'S SERVICE Report available OPERATING HOURS: 80 HOURS (START-UP ONLY) PRICE OF A NEW MACHINE: EUR 7,500,000 • Manufacturer: Reifenhäuser GmbH & Co. KG Maschinenfabrik • Model: Reicofil MB 1600 • Year of production: 2021 • Last operation: 2022 Technical data • Working width: 1600 mm • Material: Polypropylene (PP), MFI 230 / 2.16 > 400 g/10 min • Output: Up to 65 kg/h per meter of width • Product weight: 10-80 g/m² • Production outlet: 5-80 m/min • Nozzle head: MB 1600, 50 h/in • Extruder: RT-1101-1-100, L/D 30 • Rotary beam heating power: 65-172 kW Gscsx Hx Rno Tg Tiz Ijuk • Winding station: Contact winder with pre-selected coil change • Maximum winding diameter: 1250 mm • Web width: 1700 mm • Winding tension: 10–100 N/m Additional equipment and accessories • 3-component dosing system • 80 mm sieve changer • Ultrasonic cleaning system • Pyrolysis oven • Ozone extraction • Cutting knives • Central control panel with touchscreen and data entry
Year of manufacture: 2021 Serial number: 585348 Model: KUKA KR 160 R1570 nano / FLR Axles: 6 Payload: 160 kg Reach: 1570 mm Repeatability: ±0.06 mm Weight: 702 kg Controller: KUKA KRC4 Kuka recovery USB stick Safety modules X11 and X13 complete set of plugs Complete documentation I/o beckhoff ek1100 (modules 2xEL1809, 2xEl2809 2xEl9100, 1xEl2024) Dresspack (quantec nano) Remote control holder 00-138-452 Reference module 00-310-641 Mounting screws, transport ears
Laser Welder – IPG Photonics GENESIS on a Marble Base Cell Model: SYSLC0000058U Serial Number: PD206000 Power Supply: 380–415 VAC Phases: 3P + N + PE Frequency: 50/60 Hz Full Load Current: 25 FLA Overcurrent Protection: 30 A SCCR (Short Circuit Current Rating): 10 kVA Circuit Diagram: DOCCHSDMPSXX0225 Manufacturing Date: September 2022 2. Laser Source Model: YLR-1500-WC Serial Number: PLMP32200563 Power Supply: 200–240 VAC, 1 Phase, 50/60 Hz Rated Power: 4500 VA Manufacturing Date: March 2022 3. Chiller – IPG Photonics Model: LC71.01-A.4.5/6 Serial Number: PC220200019 Manufacturing Date: February 2022 Power Supply: 400/480 V, 3~ (3-phase), 50/60 Hz Overcurrent Protection: 30 A / Type 1 Short Circuit Current: 50 kA Rated Full Load Current: 16/17 A Motor Current (Max Motor Load): M1 5.5 A Circuit Diagram: P35-001221 Cooling Capacity: 5.5 / 5.9 kW Refrigerant: R407-C, 2.2 kg Maximum Operating Pressure: 30 bar.
Manufacturer: LVD Model: Electra FL3015 Serial Number: 36445 Country of Origin: Belgium Year of Manufacture: 2016 Technical Parameters: Laser Type: Fiber Laser Source Power: 3 kW Working Area: 3000 mm × 1500 mm Laser Source: Rofin FL030 Fiber Laser Source Source Serial Number: 987 Year of Manufacture: 2015 Additional Equipment: Thermotec Chiller Unit – a cooling unit for stabilizing the laser source temperature Donaldson Torit DCE DFPro-4SPK – fume extraction and filtration system Infeed/Outfeed Shuttle Table – an automatic loading and unloading table Light Guards – a light protection system
