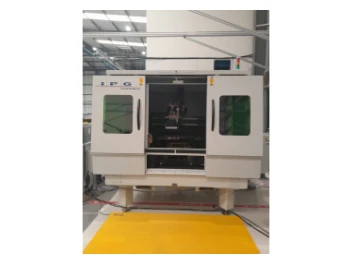

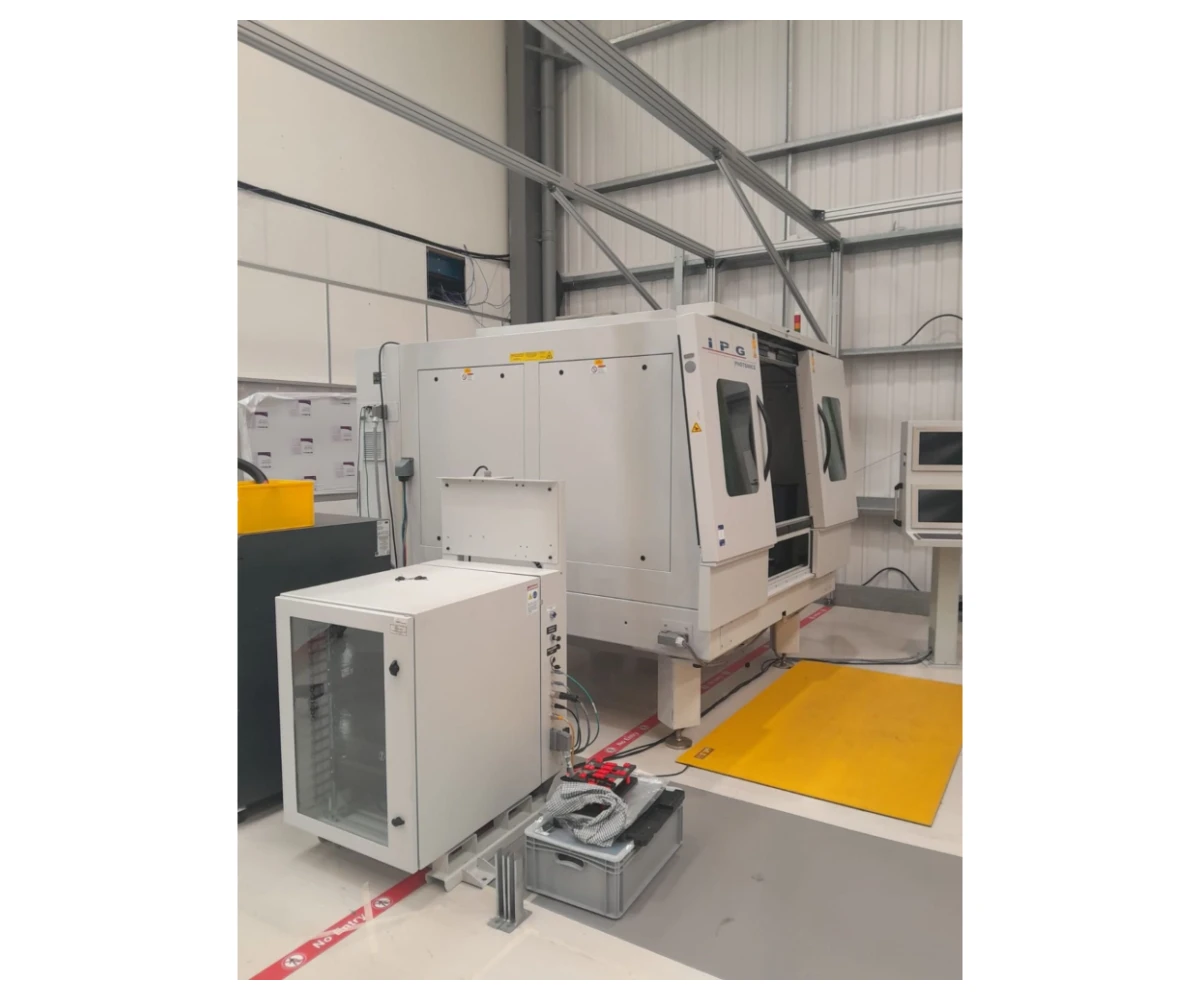

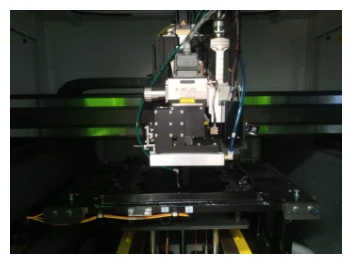

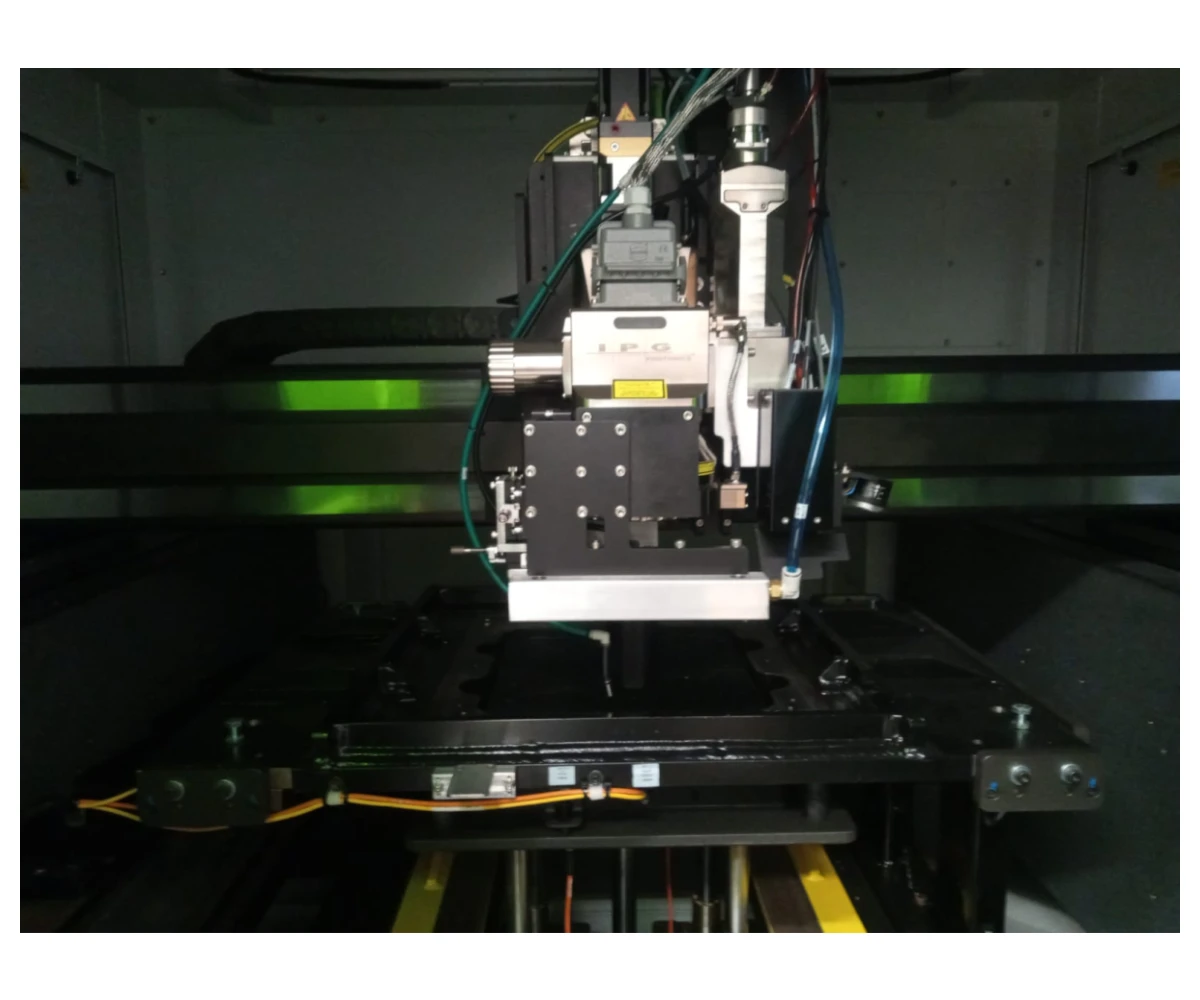

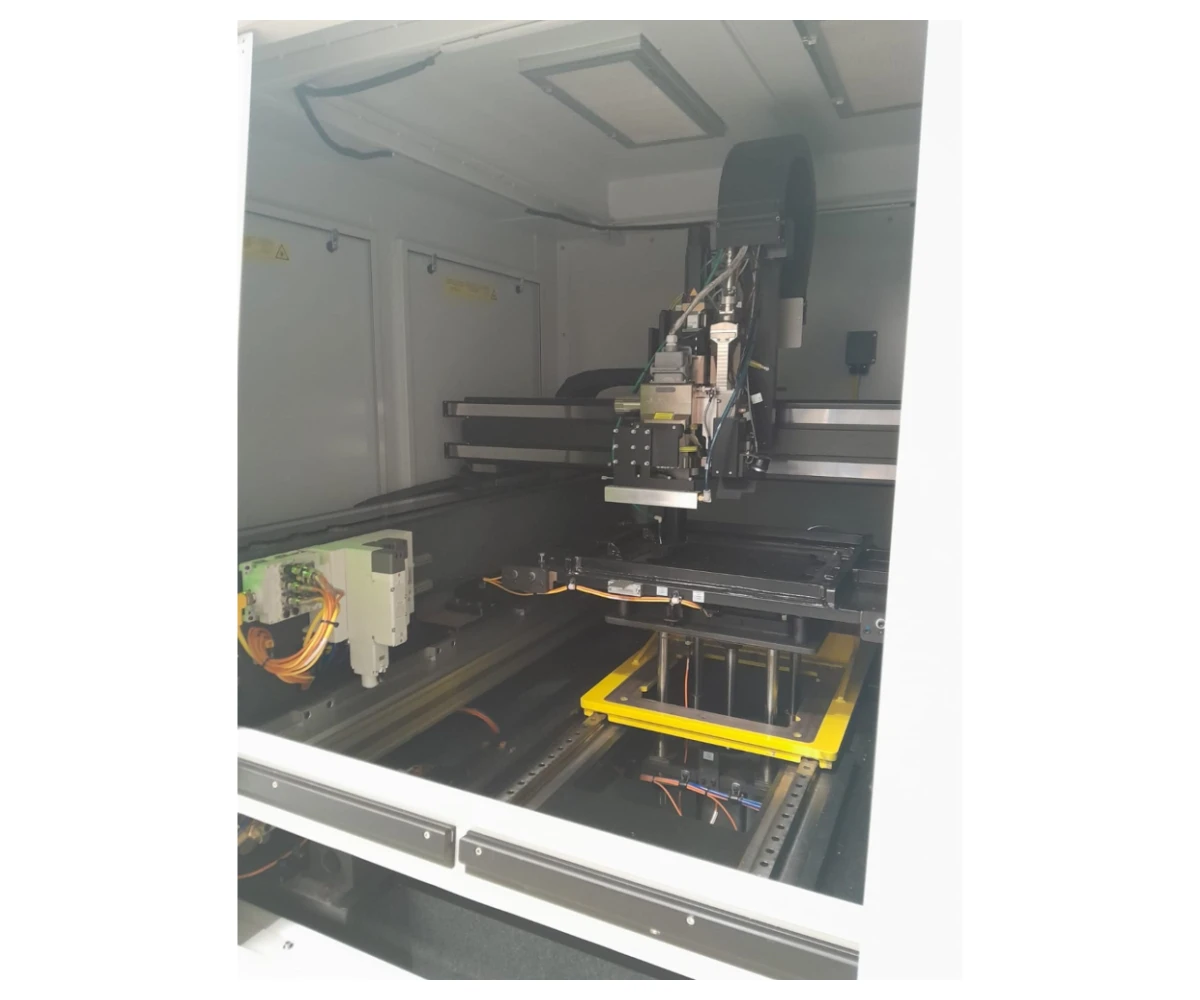

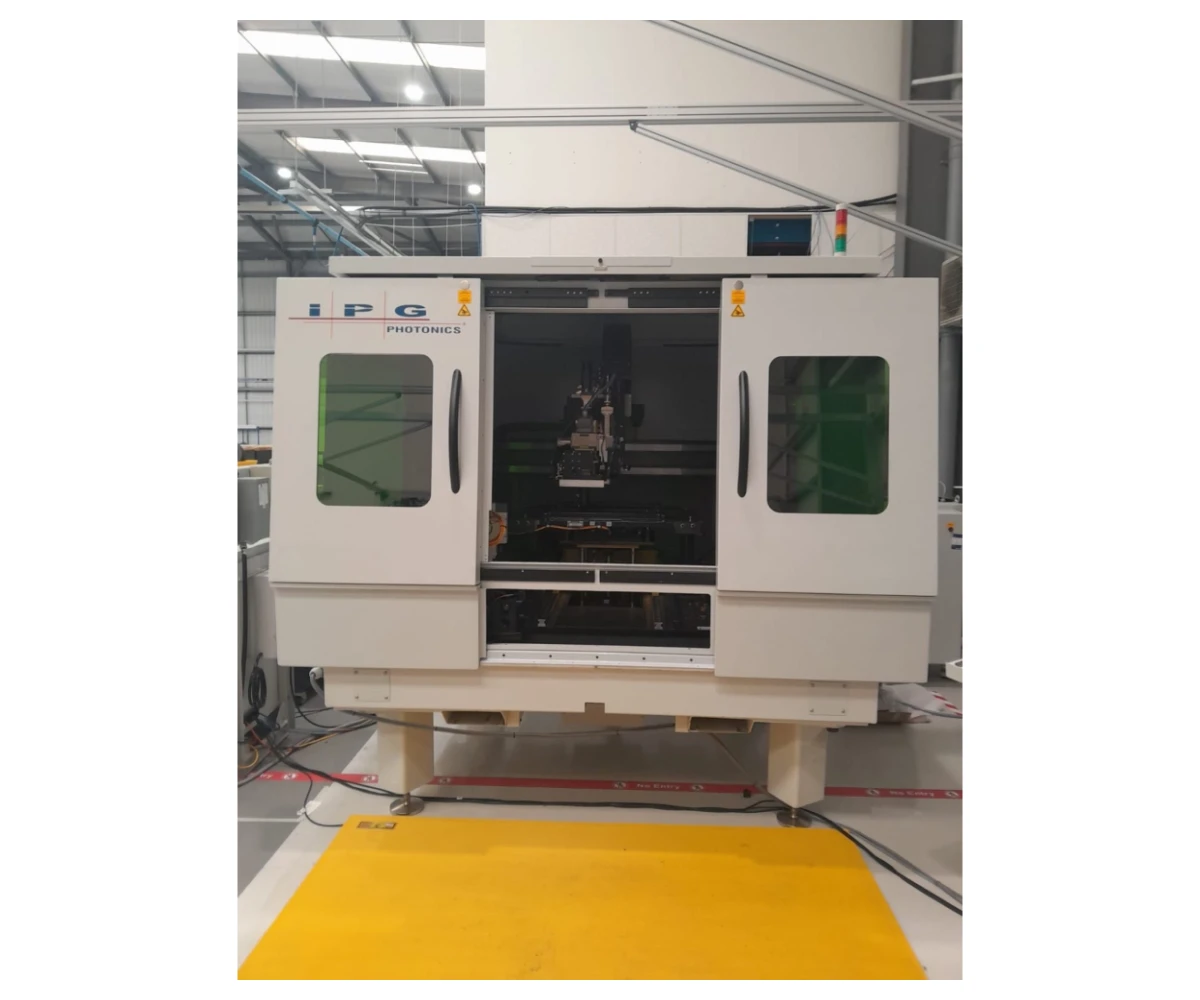

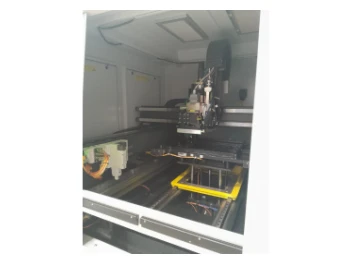

Laser Welder – IPG Photonics GENESIS
on a Marble Base
Cell Model: SYSLC0000058U
Serial Number: PD206000
Power Supply: 380–415 VAC
Phases: 3P + N + PE
Frequency: 50/60 Hz
Full Load Current: 25 FLA
Overcurrent Protection: 30 A
SCCR (Short Circuit Current Rating): 10 kVA
Circuit Diagram: DOCCHSDMPSXX0225
Manufacturing Date: September 2022
2.

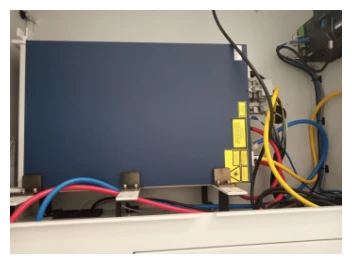

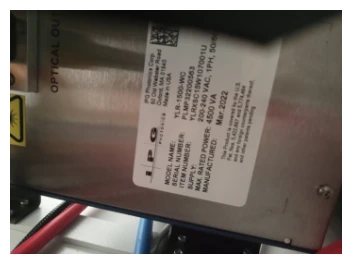

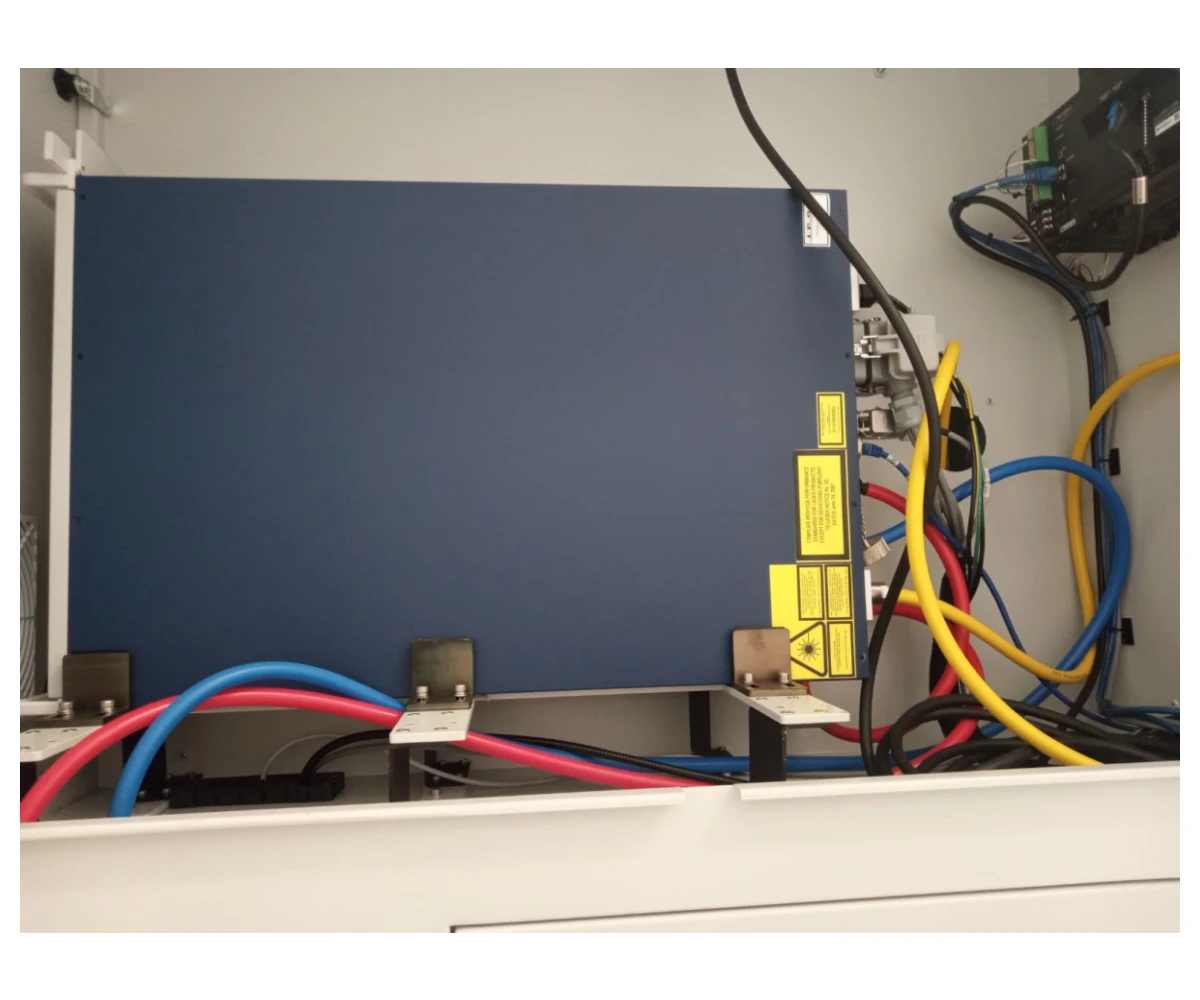

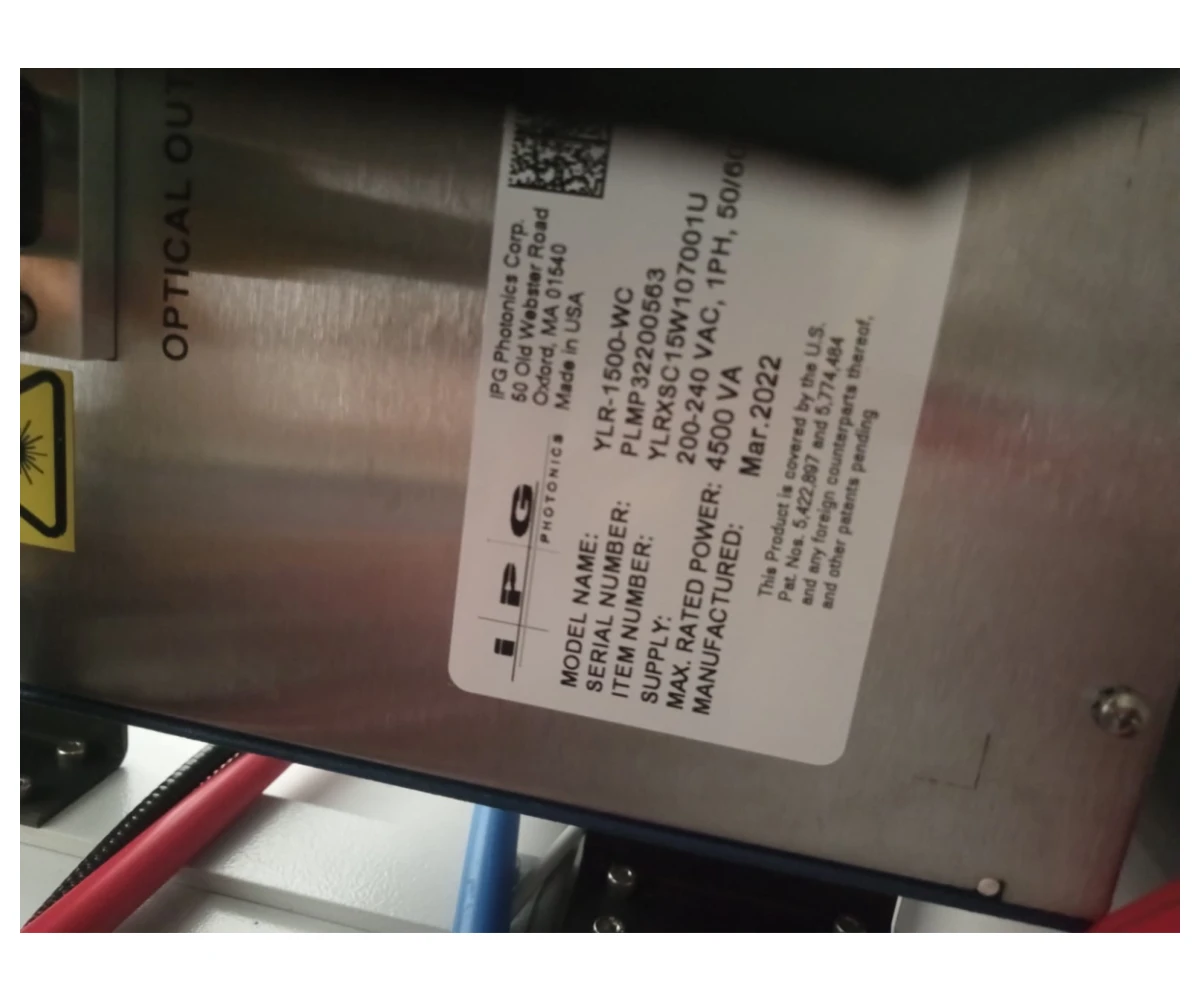

Laser Source Model: YLR-1500-WC
Serial Number: PLMP32200563
Power Supply: 200–240 VAC, 1 Phase, 50/60 Hz
Rated Power: 4500 VA
Manufacturing Date: March 2022

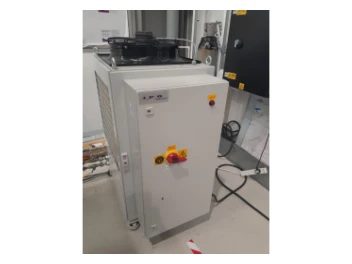

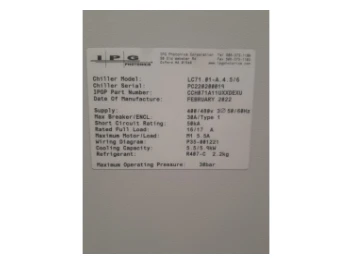

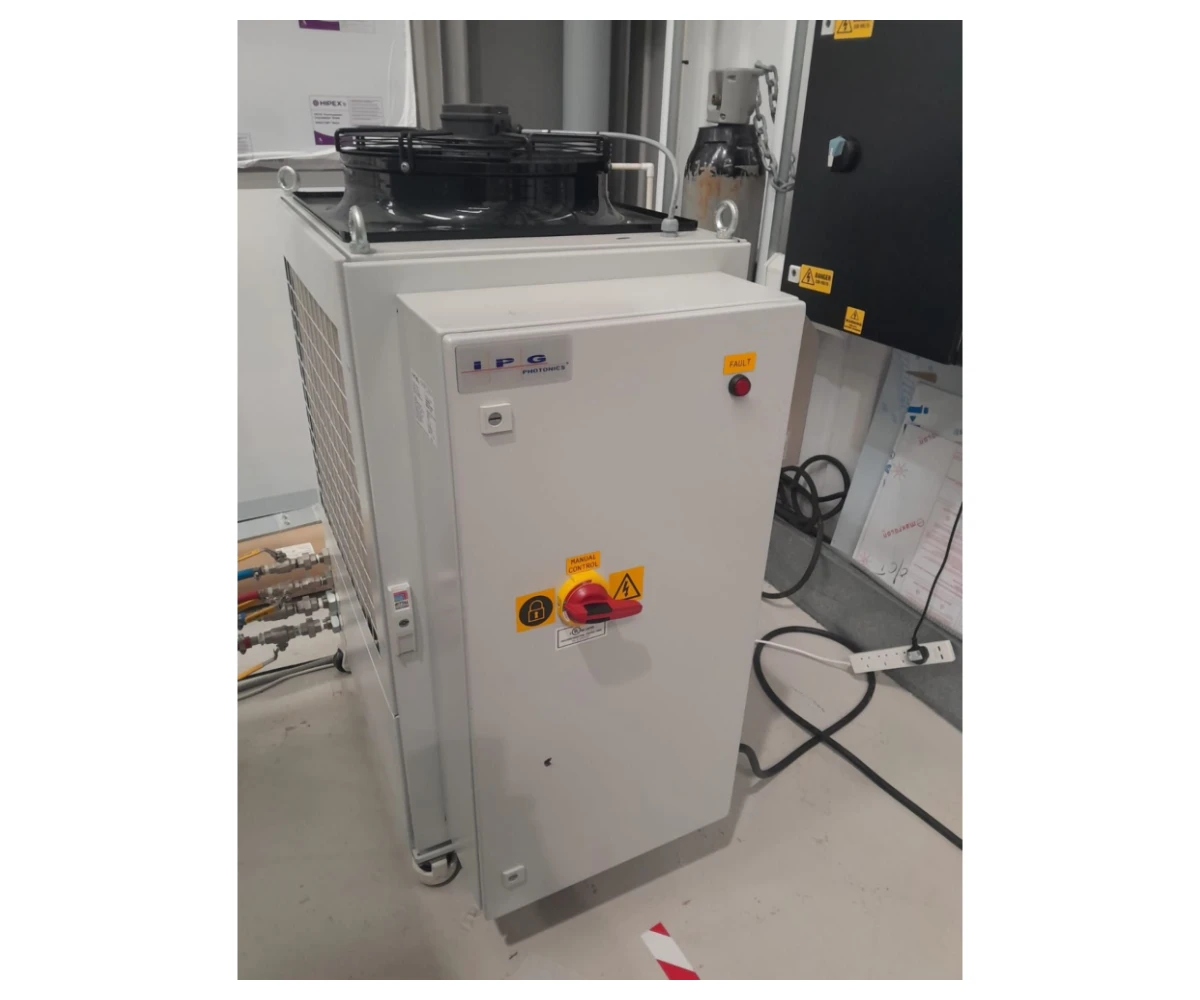

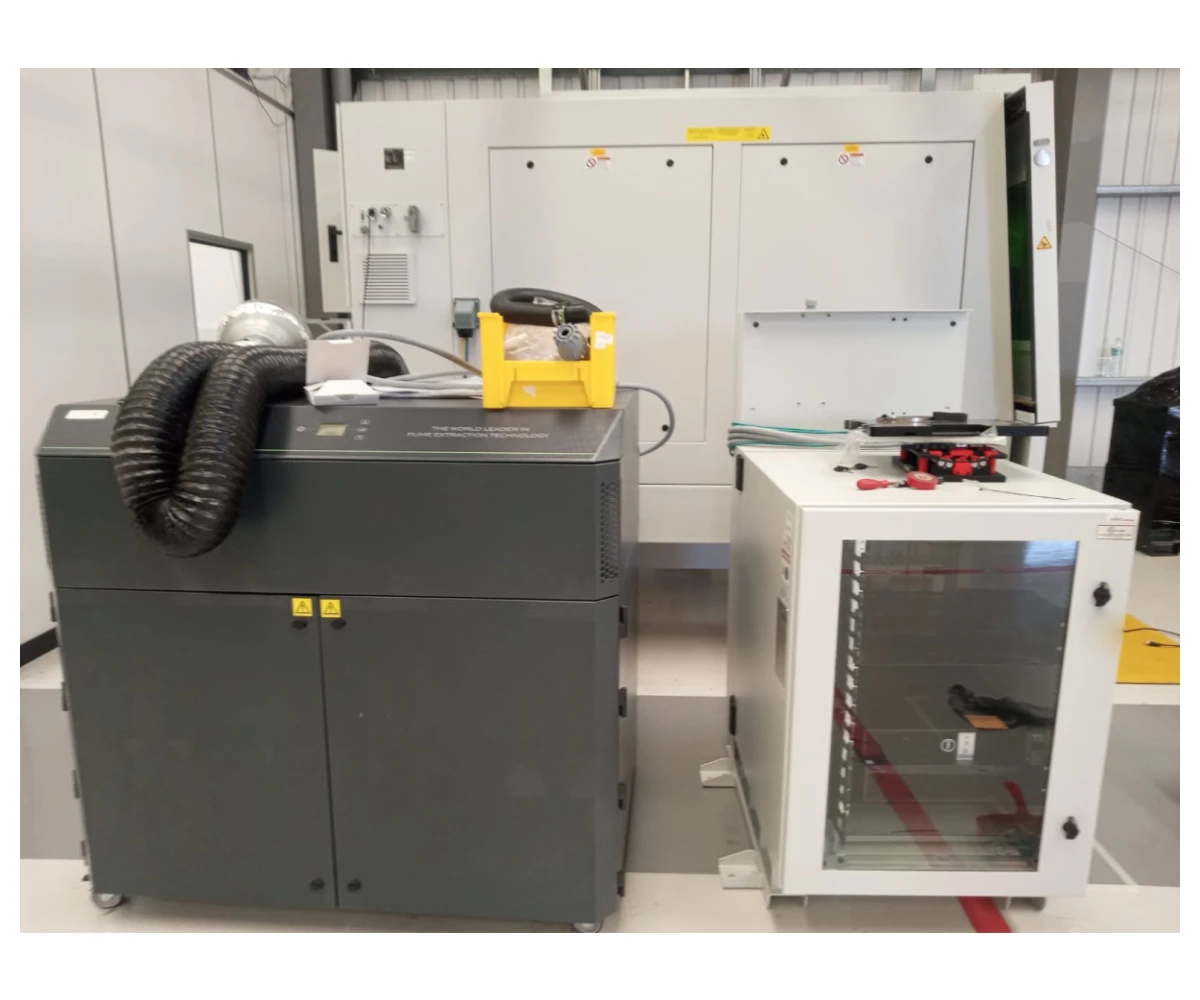

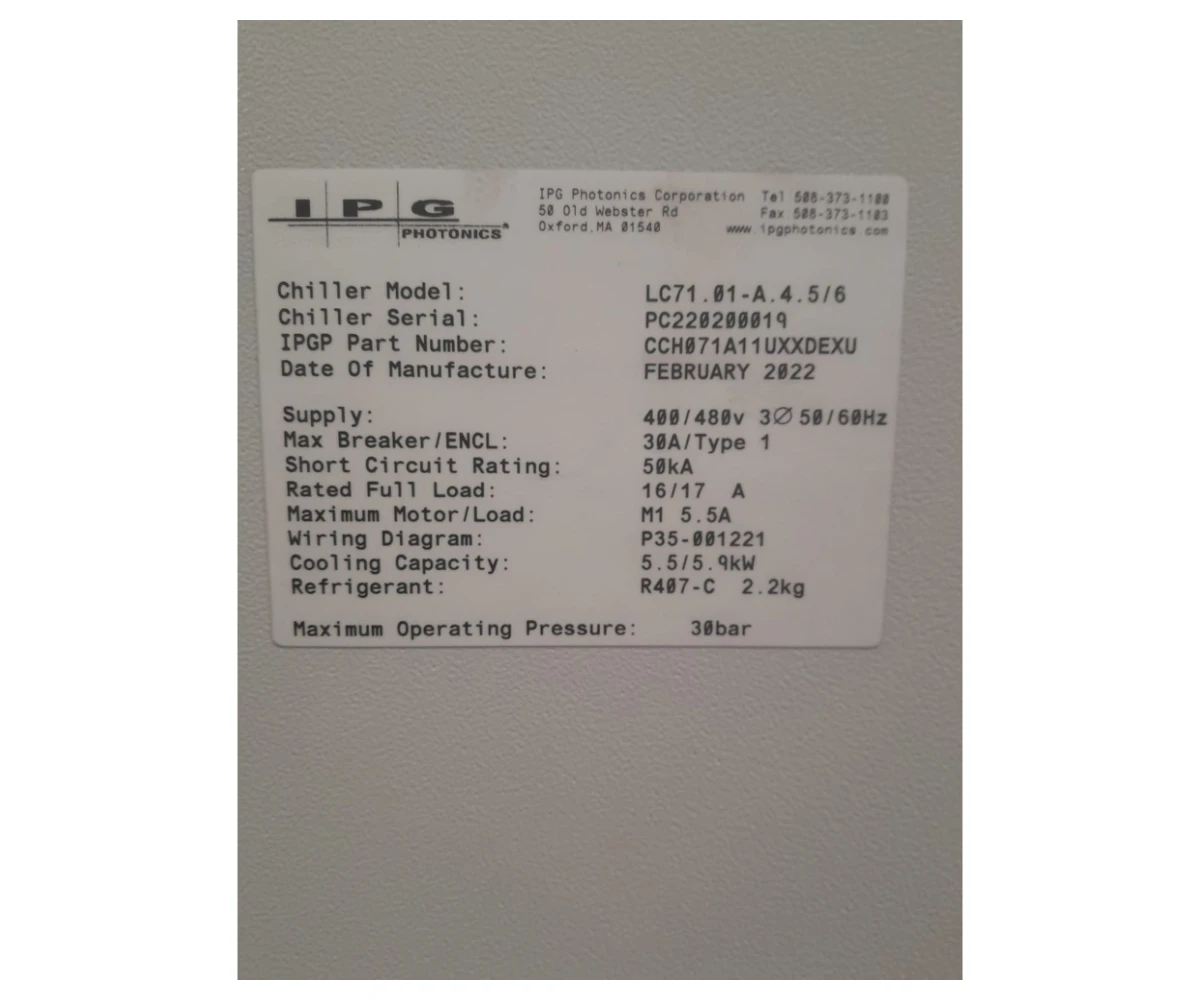

3. Chiller – IPG Photonics
Model: LC71.01-A.4.5/6
Serial Number: PC220200019
Manufacturing Date: February 2022
Power Supply: 400/480 V, 3~ (3-phase), 50/60 Hz
Overcurrent Protection: 30 A / Type 1
Short Circuit Current: 50 kA
Rated Full Load Current: 16/17 A
Motor Current (Max Motor Load): M1 5.5 A
Circuit Diagram: P35-001221
Cooling Capacity: 5.5 / 5.9 kW
Refrigerant: R407-C, 2.2 kg
Maximum Operating Pressure: 30 bar.
