AMADA HFE M2 2204 8 AXESL – where detail counts

1. When a press brake is no longer "just a machine"

In modern industry, a press brake is no longer just a sheet metal bending device. For many plants, it is a key element of the entire production line, directly impacting product quality, process repeatability, and order fulfillment speed. This is where the AMADA HFE M2 2204 8 AXESL comes in – a model long associated with precision and smooth, predictable operation.

This design is powered by AMADA – a manufacturer that has been setting standards in sheet metal processing and steel bending in production plants worldwide for decades.

2. Why sheet metal bending is more than just "bend and done" today

In the production of industrial parts, it's increasingly less about individual components. What matters is production runs, repeatability, and the ability to quickly respond to design changes. Even small angle deviations can, in the long run, generate:

• material losses,
• the need for manual corrections,
• downtime at the workstation.

That's why modern press brakes increasingly emphasize process control, not just press force.

3. 8 CNC axes – what does it really change?

The 8-axis version in the HFE M2 model isn't a marketing gimmick. It's a real tool that impacts work quality, which:

• stabilizes the bending beam along its entire working length,
• enables dynamic deflection compensation,
• allows automatic angle correction during bending.

In practice, this means that the operator doesn't have to rely on experience for every new part. The machine itself strives to maintain the desired parameters, even with long, demanding components.

4. Steel Bending in the Realities of Heavy Industry

In factories operating in the heavy industry, steel bending is a daily occurrence. Thick materials, large formats, and multi-shift operation require machines that:

• don't "float" in accuracy,
• don't require constant manual adjustments,
• retain repeatability even after many hours of operation.

The AMADA HFE M2 2204 was designed with precisely these conditions in mind – where stability and predictability are key, not the "wow" factor in a brochure.

5. Interesting Fact: Why Operators Like This Series

In conversations with technologists and operators, the same theme often comes up: predictability.

The machine:

• behaves the same at the beginning and end of a shift,
• doesn't "surprise" with subsequent runs,
• allows you to focus on the detail rather than constantly adjusting settings.

This is why HFE M2 models often work as the heart of a larger production line, even in conjunction with bending robots.

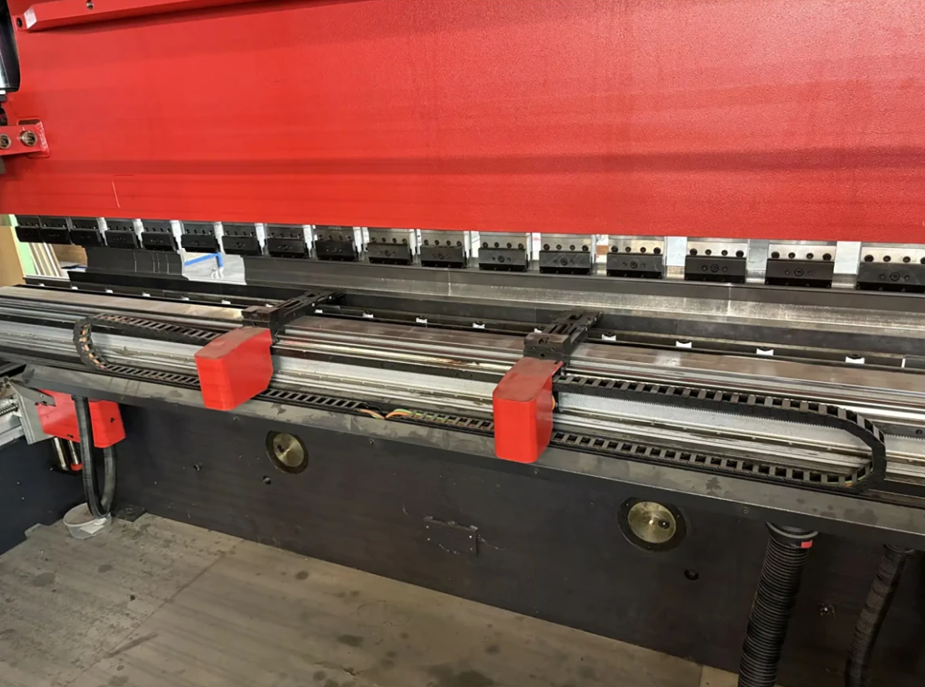

6. The AMADA HFE M2 2204 8 AXESL in Practice – An Example of Such a Machine

A good example of how this class of press brake works in practice is the AMADA HFE M2 2204 8 AXESL, available from our offer. This machine is designed for stable operation in mass production, where repeatability of parts, angle control, and predictability of the entire process are crucial.

The following specifications illustrate how this concept looks in practical production conditions:

Technical Specifications:

• Manufacturer: AMADA
• Model: HFE M2 2204 8 AXESL
• Year of Manufacture: 2016
• Serial Number: HFE-M2-220.4 LK101025
• Number of Axes: 7 (8 AXESL configuration)
• Pressing Force: 2,200 kN
• Length: 4,000 mm
• Safety System: AKAS III P (laser)
• Bending Angle Measurement: Digital Angle Sensor
• Stroke: "Long Stroke" (extended)
• Connected Power: 20 kW
• Operating Hours: 10,238 h

Dimensions and Weight:

• Weight: 17,970 kg
• Dimensions (W x H x D): approx. 550 x 300 x 200 cm

Additional equipment:

• Tool rack (VA)
• 2 tables with accessories

7. Summary – a machine for those who care about detail

The AMADA HFE M2 2204 8 AXESL is a press brake for companies that:

• treat sheet metal processing as a strategic process,
• want to consistently produce production runs,
• expect high precision when bending steel,
• work in demanding heavy industry conditions.

This isn't a "do-it-all" machine. It's a machine for specific tasks – where detail, repeatability, and smooth production are of real value.
